The air receiver is designed to store compressed air and optimize the efficiency of compressors and compressed air systems.

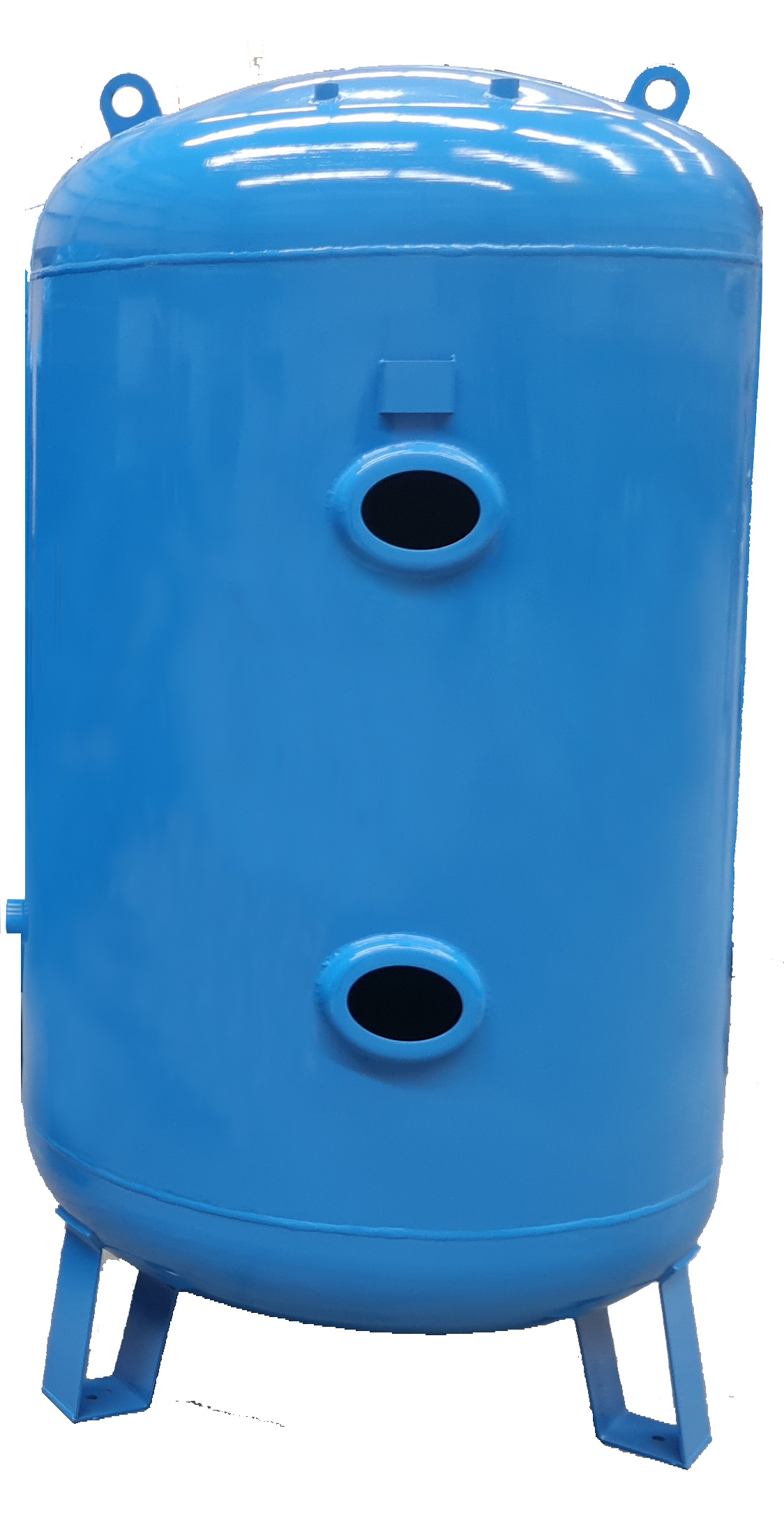

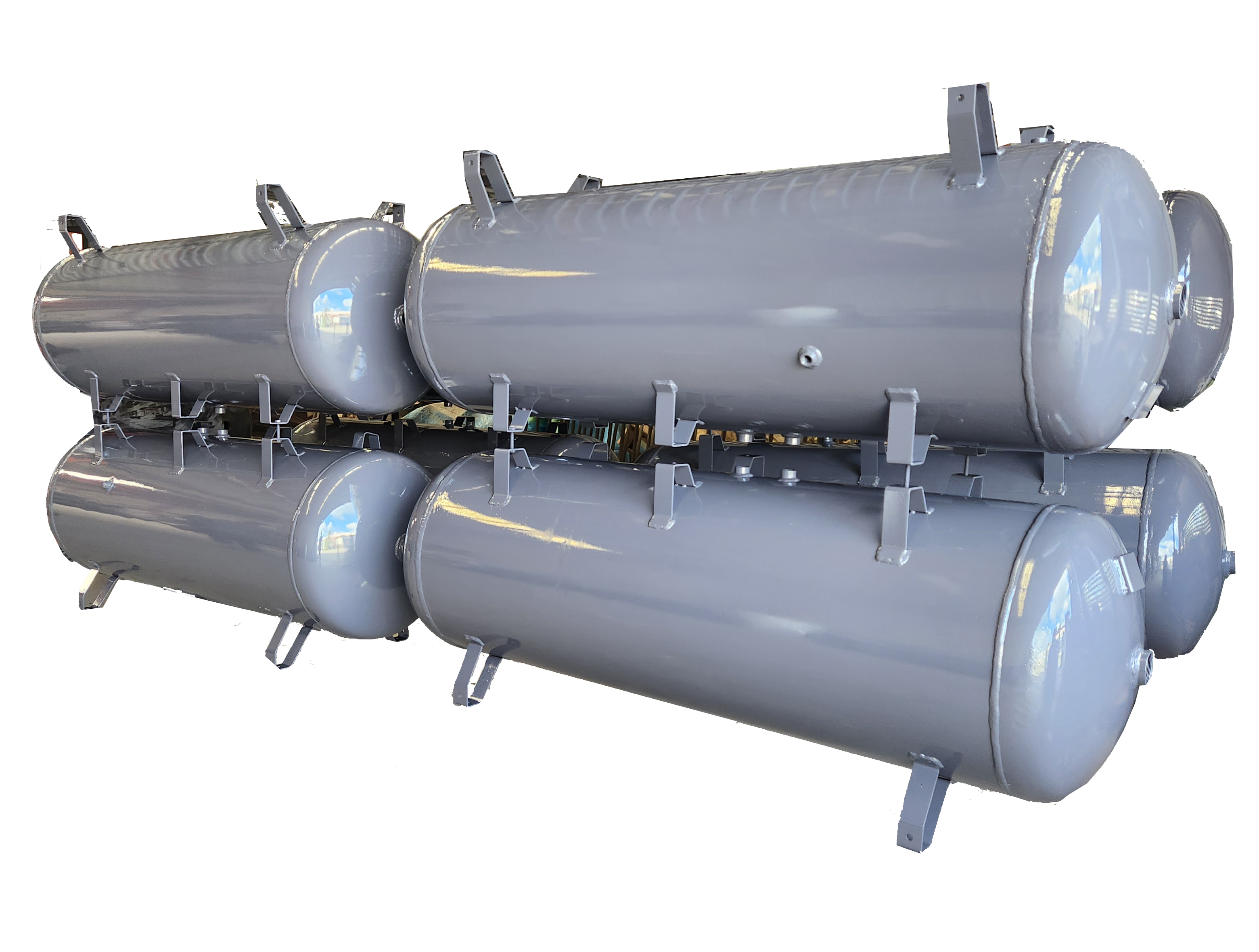

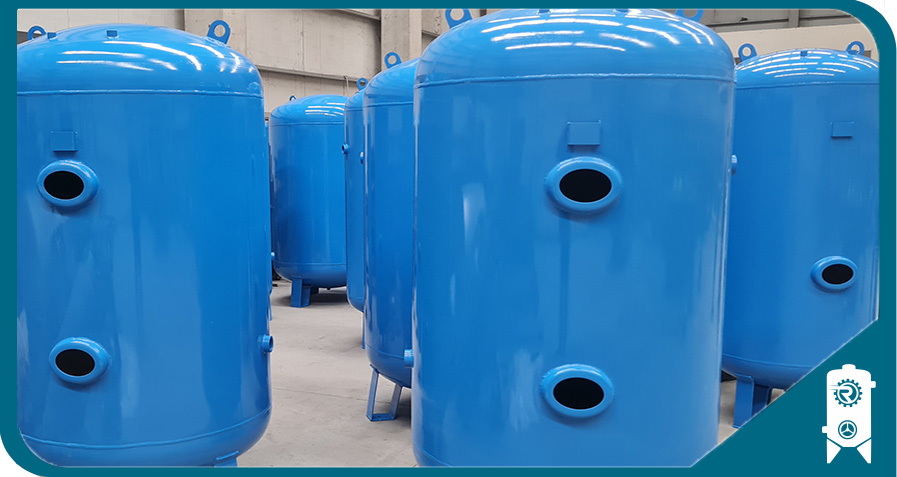

AIR TANKS
Technical Characteristics
The air receiver is
designed to store compressed air and optimize the efficiency of compressors and
compressed air systems. The receiver compensates the pressure fluctuations in the pneumatic system. It
provides an adequate supply of compressed air to meet demands that exceed the
capacity of the compressor and extend its service life. Another advantage of
the air collector is that it facilitates the condensation of air in the air and
the emptying of the resulting condensate. Water accumulated as a result of
condensation in the air receiver is discharged to the outside. Thus, the air in
the system remains dry.
Design and Production Standards:
EN286-1, EN13445, AD2000
Steel Quality:
EN10028-2 P265GH , P355GH
, P275NH, P355N , P355NH
Volume:
300lt – 10.000lt
Working Pressure:
11 bar, 16 bar, 40 bar
Accessories:
Pressure gauge, safety valve, condensate drain valve
Coating:
Electrostatic powder
coated / Galvanized
